C 414 AKG

C 414 B-ULS
FREQUENCY RANGE	20 Hz to 20 kHz

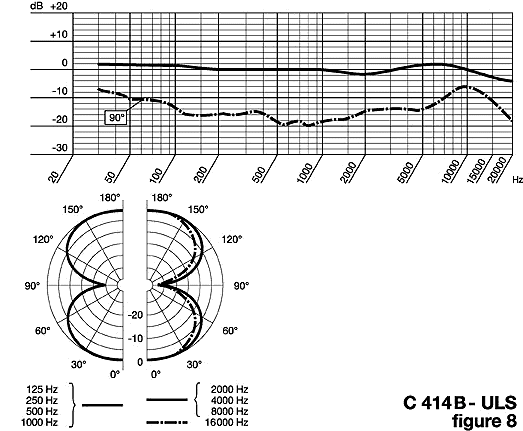

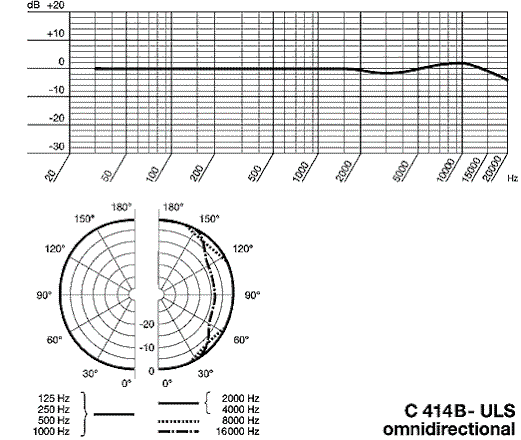

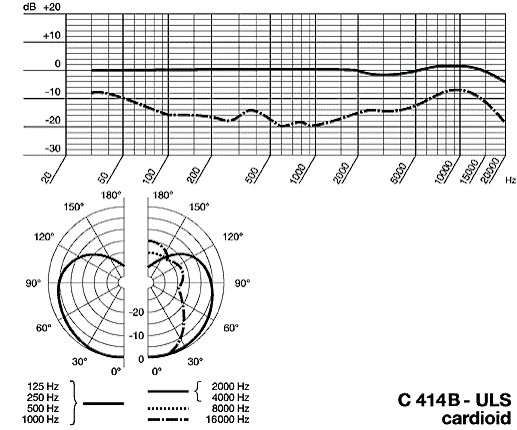

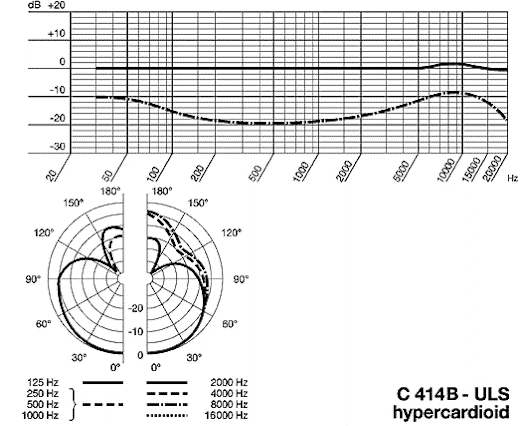

POLAR PATTERNS	Cardioid, Hypercardioid, Omnidirectional and Figure-8
PREATTENUATION	-10 dB, -20 dB switchable
BASSCUT FILTER	12 dB/octave roll-off at 75 Hz or 150 Hz
SENSITIVITY	12.5 mV/Pa (-38dBV) (all patterns)
IMPEDANCE	180 ohms
EQUIVALENT NOISE LEVEL	14 dB-A
MAXIMUM SPL FOR 0.5% THD	140 dB (160 dB@-20 dB) at 1 kHz 134dB (154dB@-20dB) 30Hz-20kHz
POWER REQUIREMENT	9-52 V phantom power to DIN 45596
CURRENT CONSUMPTION	approx. 2 mA
SIZE	141x45x35 mm (5.6x1.8x1.4 in.)
NET/SHIPPING WEIGHT	320/920 g (11.3 oz. /2.1 lbs.)

•
